- Light construction (carrier frame and the lifting column made of 100% aluminium)
- Extra light and easy to manoeuvre
- High-quality lockable double castors
- Electrical height adjustment
- Electrically spreadable carrier frame
- Thanks to the patent-pending adjustment feature designed to reduce rotation, no disruptive swinging or rotational movements occur during lifting and transferring.
- The hand control includes a display indicating the battery charge status.
- Working in an ergonomic and health-oriented manner, as no manual lifting is required
- 4-point sling spreader bar
- It can have a maximum patient weight of up to 230 kg but is also available with a patient scale of up to 250 kg.

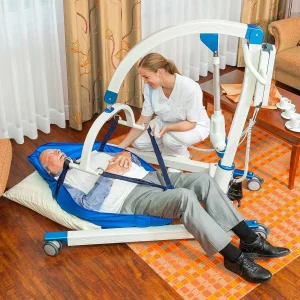

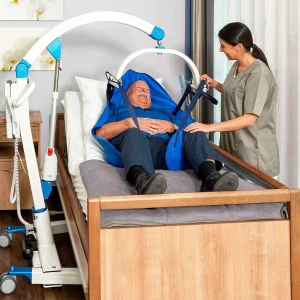

Beka Carlo Alu Classic ELS 230 Floor Hoist
The Carlo Alu Classic 230 floor hoist is designed for lifting, repositioning and transferring residents with limited mobility. Due to the special construction made of aluminium and steel components, the hoist is easy to manoeuvre and provides the stability required for the care of heavyweight residents. The extra-wide stainless steel sling bow is compatible with all loop slings. It features a safety locking mechanism for securing the slings and includes a patent-pending adjustment feature to minimise rotation.
Along with a huge lifting range, the Carlo Classic Alu Classic 230 floor hoist also offers an extensive and free range of rotation. The resident can be easily brought into the desired nursing position without any discomfort or hitting their legs or knees.
Carrier frame (length/height) | 1.400 mm / 125 mm |
Inner width (closed) | 540 mm |
Outer width (closed) | 700 mm |
Total width of the lift (carrier frame closed) | 700 mm |
Lifting range | 1.400 mm |
Max. patient weight | 230 kg |
SWL | 230 kg |
Drive | 24V LINAK drive |
