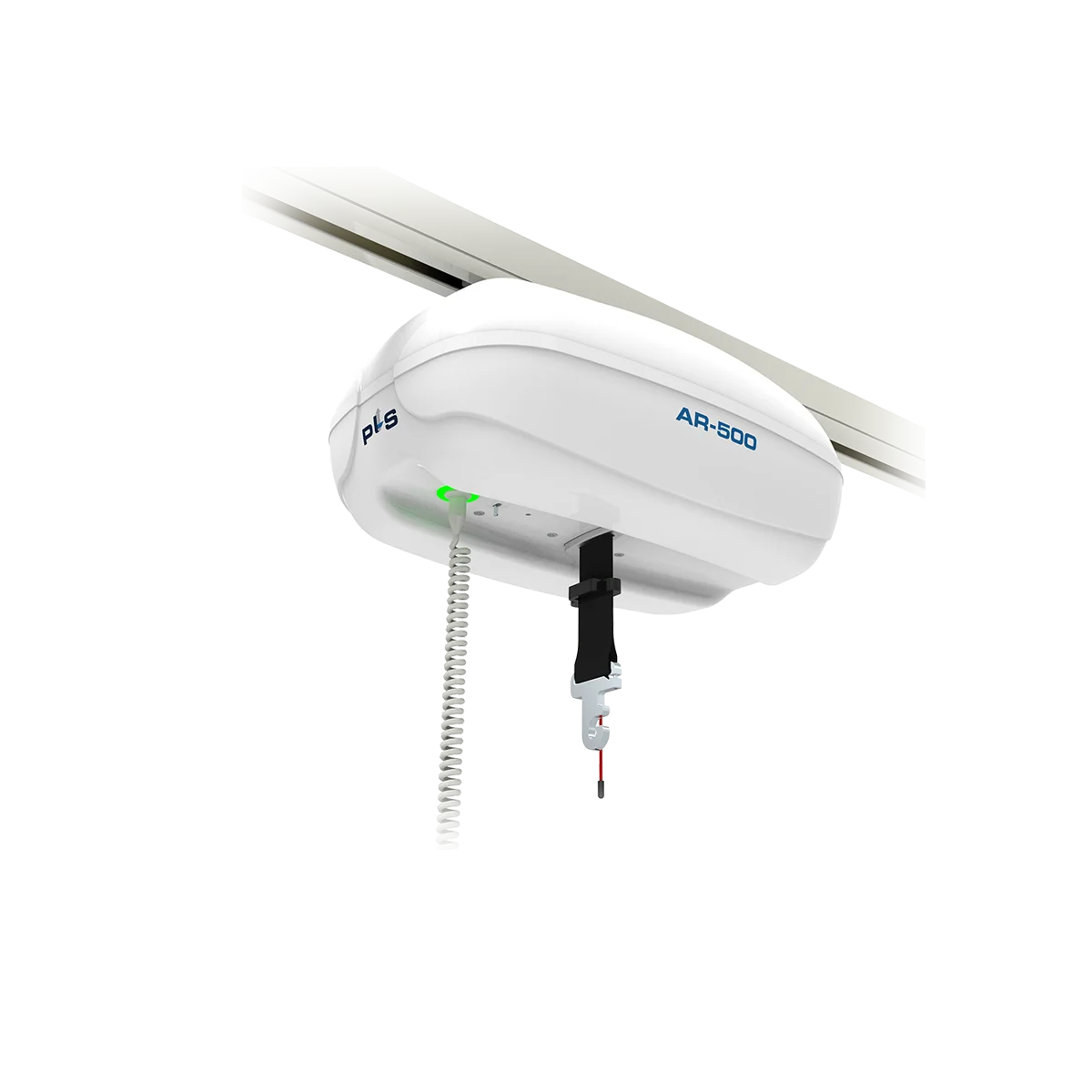

The AR-500 is a heavy duty Ceiling Hoist for a safe and respectful patient movement. The high-quality Ceiling Hoist is extremely low noise in use, both in lifting and moving through the rail.
AR-500 SKU: chs-473-1-1-1-1. Category: PLS Ceiling Hoists FEATURES:
- An advanced battery protection system.
- Auto stand-by when not used for a while.
- No power consumption in stand-by.
- Slow start and stop function for high lifting comfort.
- Prepared for an electric spreader bar.
- Charged by hand control, using a magnetic wall charger.
- Double steering trolley for an easy and smooth transfer through the rail.
Technical specifications:
- Lift capacity (swl) 500 kg
- Dimensions 377 x 297 x 135 mm
- Weight 15,7 kg
- Power Battery charged; 24 V/DC, 10 Ah
- Minimal belt length 140 mm
- Maximal belt length 2260 mm
- Lifting velocity 35-70 mm/sec
- Lifts per full charge >80 @200 kg, >35 @350 kg
- Charging time 8 Hours
