- Handset operation
- Battery backup
- Moulded polyurethane padded bed
- Integrated water collection tray with drain hose
- Integrated LED light and tilting headrest
- Neatly stowed when not in use
- Rust-free stainless-steel bed frame & components
- Ideal for use in changing places facilities

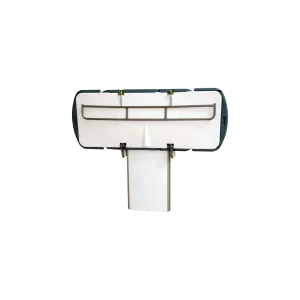

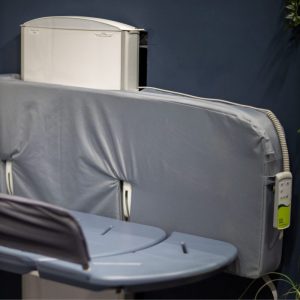

Astor CTX2 Changing Table
The CTX2 height-adjustable changing table, featuring a water collection tray and drain hose, is perfect for showering and changing in a home environment. This wall-mounted changing table combines many practical and aesthetic features to ensure a safe and comfortable delivery of everyday caregiving tasks.
The handset controls the bed’s up-and-down movement and integrated lighting. The bed height can be adjusted easily, and the tilting headrest promises added comfort. With zero inconvenience, the Astor CTX2 changing table helps create a calm, relaxed environment for transferring and changing. The stainless steel parts are meant to withstand extensive use in wet and humid environments.
| Height adjustable range | 300 mm – 1040 mm (740 mm) |
| AC input | 110 VAC-240 VAC, 50/60 Hz, 382 VA |
| Power supply | Class I power supply |
| Applied part | Applied part type ‘B’ |
| Battery specification | Lead acid battery/ “non-spillable” Input 30 V – Output 24 V |
| Supplier reference | TiMotion (TBB2-4307-001) |
| Battery model | TiMotion TBB2 1.2 A |
| Fuses | 5 Amp fuses (External to the device, part of the mains supply system) |
| Duty cycle | 10% maximum |
| Maximum working load | 200 kg |
| Sound emission | LAeq 56dB at maximum working load |
| Length | 87 13/32” (2220mm) for 70 7/8” (1800 mm) stretcher |
| Height | 35 15/16” (913 mm) – Front guard deployed |
| Weight of product | 98 kg |
| Materials | Mild Steel, Stainless Steel, Polyurethane, ABS |
| Operating ambient temperature range | 10°C to 40°C / 50°F to 104°F |
| Operating relative humidity range | 10 – 80% not condensed at 20°C / 68°F |
| Operating atmospheric pressure | 50kPa to 106kPa |
| IP class | IPX4 |
| Transport & storage conditions | 0°C to 40°C / 50°F to 104°F 10 – 80% not condensed at 20°C / 68°F |
Coming Soon...
			For More Information







 Astor CTX2 Installation & User Guide
Astor CTX2 Installation & User Guide
