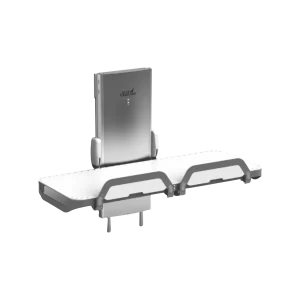

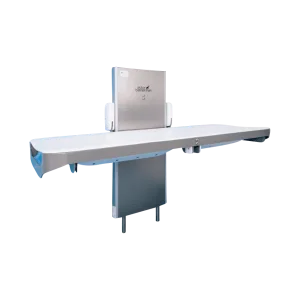

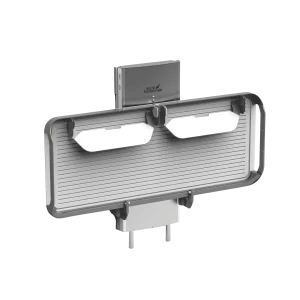

Astor Invincible Shower Trolley

Designed specifically for public changing places toilets, the Astor Invincible is a robust height-adjustable changing table that delivers uncompromised user comfort, a tamper-resistant design and a graffiti-proof stretcher. The Astor Invincible is built using robust materials with no visible or accessible wires or cables to ensure enhanced durability. The working elements of this product can only be accessed using specialist security tools.

The Astor Invincible shower trolley incorporates an innovative split-guard. One section of the guard can be lowered, allowing for enhanced access, care, and comfort while still maintaining security with the remaining part of the guard in place. The Astor Invincible shower trolley can be neatly stowed when not in use to maximise room space. It features an emergency stop button and battery backup for safe lowering in the event of a power failure.

Request a Quote
  • Innovative split guard for versatile use
  • Patented stretcher for increased comfort
  • Highly cut-resistant bed
  • Simple cleaning
  • No removable parts or exposed cables
  • IK10 tested and produced to BS EN 62262
  • Integrated control
  • Anti-tamper screws and fixings
  • Easy access and non-tamper embedded controls
Height adjustable range 300 mm to 1040 mm
AC input 110 VAC-240 VAC, 50 / 60 Hz, 382 VA
Power supply Class I power supply
Applied part Applied part type โ€˜Bโ€™
Battery specification Lead acid battery/ โ€œnon-spillableโ€ Input 30 V โ€“ Output 24 V
Supplier reference TiMotion (TBB2-4307-001)
Battery model TiMotion TBB2 1.2 A
Fuses 5 Amp fuses (External to the device, part of the mains supply system)
Duty cycle 10% maximum
Maximum working load 227 kg
Sound emission LAeq 56dB at maximum working load
Length 1911 mm or 1800 mm
Height 1937 mm
Depth 990 mm โ€“ Stretcher and guard deployed
Weight of product 98 kg
Materials Mild Steel, Stainless Steel, Polyethylene
Operating ambient temperature range 10ยฐC to 40ยฐC / 50ยฐF to 104ยฐF
Operating relative humidity range 10 โ€“ 80% not condensed at 20ยฐC / 68ยฐF
Operating atmospheric pressure 50kPa to 106kPa
IP Class IPX4
Transport & storage conditions 10ยฐC to 40ยฐC / 50ยฐF to 104ยฐF 10 โ€“ 80% not condensed at 20ยฐC / 68ยฐF
